The Bearish Harmonics indicator will help you trade harmonic patterns with ease. It recognizes the twelve most favourable Bearish harmonic patterns. It displays the figures with sell signals and price targets on your charts. The associated screener will help you discover trade opportunities in real-time.

Indicator Installation

Before installing the indicator, you must purchase a license or subscribe to the trial version. The indicator is available on the Prorealcode marketplace at this address:

https://market.prorealcode.com/product/bearish-harmonic-patterns-indicator-screener

Installing the indicator is a quick and easy process. Follow the standard installation procedure described on this page:

https://market.prorealcode.com/how-to-install-my-product-in-prorealtime

Launching the Indicator

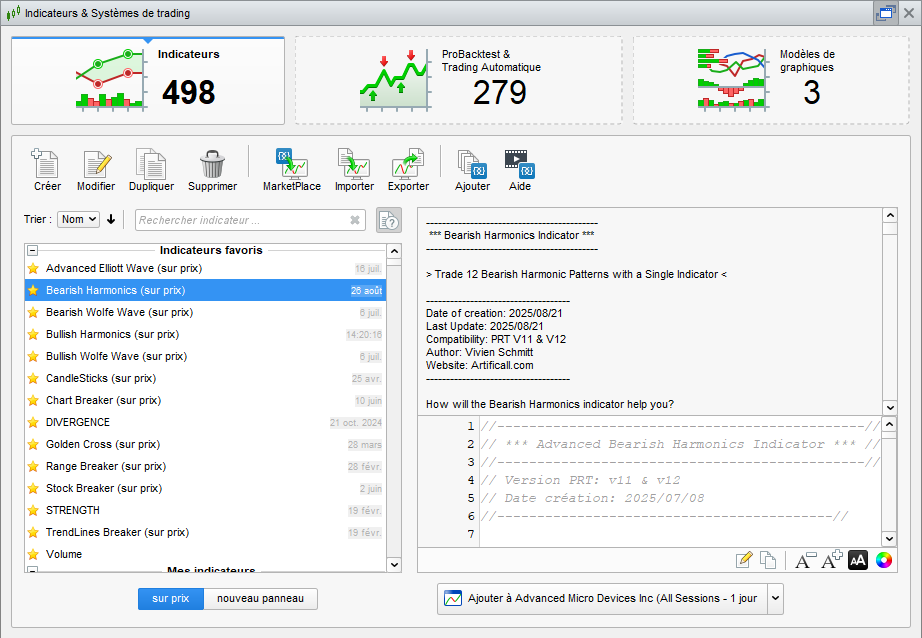

After installing the license on your Prorealtime platform, the indicator will be available in the Indicators & Trading Systems window in the “ProRealCode MarketPlace” section.

To access the indicators window, click on the “Price” icon located in the price chart window, then on “Add Indicator…“:

To access the indicator, refer to the “ProRealCode MarketPlace” section or type the name “Bearish Harmonics” in the search bar. Double-click on the “Bearish Harmonics” indicator to display it in the price window:

Why does the price chart become flat after loading the indicator?

The indicators return buy and sell signals. This allows you to use the indicator to create alerts and backtests. It returns 1 for buy signals and -1 for sell signals. These values ​​are displayed by default on the price chart. This automatically adjusts the chart size, making it flat.

To avoid having to readjust the price chart, follow these steps:

1. Double-click on the price chart
2. Open the indicator configuration window
3. Scroll to the bottom of the window
4. Uncheck the boxes in the “Line” column (which can be called “Signal”, “Breakout”, “Crossing”, etc.)

The price chart will readjust; you won’t need to repeat this action. If the problem persists, you can uncheck the stoploss and targets. The indicator already displays these.

Indicator Configuration

The Bearish Harmonics indicator is fully configurable. It offers numerous options that enable you to tailor the indicator to your specific needs. You can choose the type of harmonic patterns, display Fibonacci levels, allow sell signals to, apply filters, set price target levels, and change the display.

Accessing the Control Panel

To access the indicator control panel, click the indicator tab at the top of the price chart window and then click “Configure“:

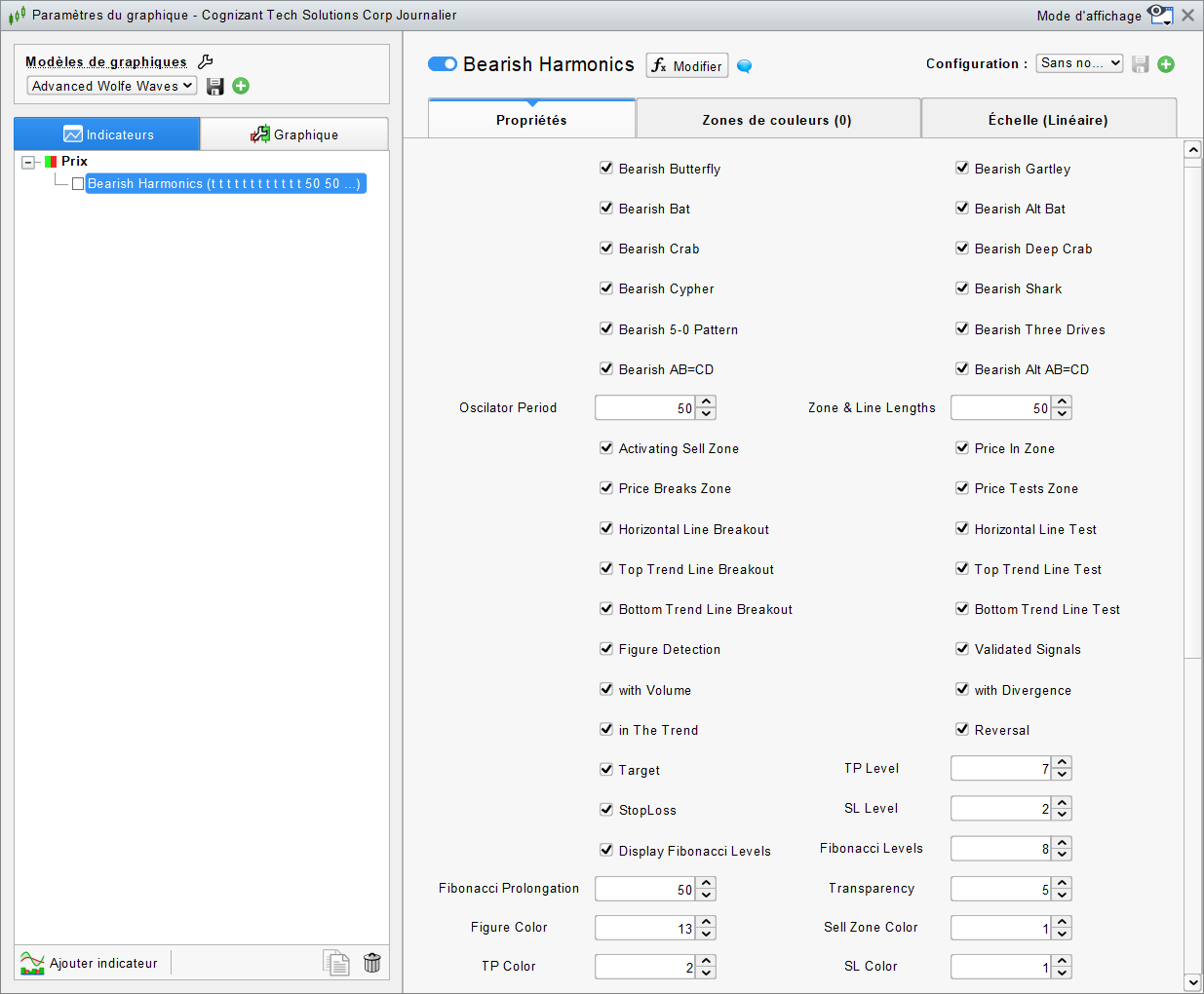

The indicator configuration window will open and allow you to configure it according to your wishes:

Selecting Harmonic Patterns

You can select the type of harmonic patterns the indicator will look for on the price chart. To do this, check the corresponding box(es):

Pattern Size

The indicator uses an oscillator to identify peaks and troughs, thereby revealing harmonic patterns. You can set the oscillator’s period with the “Oscilator Period” parameter:

Sell Zone Length

When the indicator has identified a harmonic pattern, it plots sell zones and breakout lines to detect signals. You can set the length of the sell zones and breakout lines with the “Zone & Line Lengths” parameter:

Sell Signal Selection

The indicator detects sell signals specific to each pattern. It integrates several types of signals to help you adapt to each situation. You can open reversal, recovery, and downtrend continuation positions.

Here are the types of sell signals detected by the Bearish Harmonics indicator:

Bearish Reversal	Down trend Resumption	Down trend Continuation
Price in Sell Zone Breakout of Sell Zone Test of Sell Zone Breakout of Bottom Trendline Test of Bottom Trendline	Breakout of Top Trendline Test of Top Trendline	Breakout of Support Test of Support

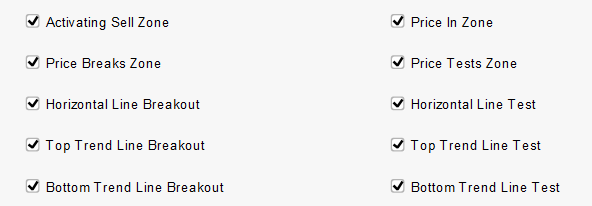

You can select the types of sell signals by checking the corresponding box(es):

Here are examples of sell signals detected by the Bearish Harmonics indicator:

Pattern Detection

You can display the moment a pattern is detected by checking the “Figure Detection” box. In this case, the indicator will consider the pattern detection as a sell signal:

Signal Validation

You can enable signal validation by checking the “Validated Signals” box. In this case, the indicator will only display validated signals.

Volume Filter

You can filter signals only if they are accompanied by volume. To do this, click the “with Volumes” option:

Divergence Filter

You can filter signals only if there is a bearish divergence. To do this, click the “with Divergence” option:

Trend Filters

You can filter signals according to the market trend:

• The “In the Trend” option only retains sell signals appearing in a downtrend.
• The “Reversal” option only retains sell signals appearing in an uptrend.

Price Target and Safety Stop

The indicator uses the pattern construction points to calculate Fibonacci ratios. These ratios will be used to define specific price targets.

• You can choose to display these levels by checking the “Take Profit” and “Stop-Loss” boxes.
• You can adjust these levels with the “TP Level” and “SL Level” parameters.

Fibonacci Levels

You can display the Fibonacci extensions associated with each harmonic pattern with the “Display Fibonacci Levels” option.

You can set the number of Fibonacci levels the indicator will display with the “Fibonacci Levels” option.

Display Options

The Bearish Harmonics indicator contains options that allow you to customize the indicator’s display:

Here is the list of options and their meanings:

Options	Significations
Fibonacci Prolongation	Extension of the display of Fibonacci levels
Transparency	Transparency of patterns, sell zones, and Fibonacci zones
Figure Color	Color of harmonic patterns
Sell Zone Color	Color of the sell zones and trendlines
TP Color	Color of the price target
SL Color	Color of the safety stop
Line Thickness	Thickness of the lines of patterns, zones, price targets, and safety stops
Font Size	Font size for displaying text data
Display Figure Name	Displays the names of detected patterns

Data Returned by the Indicator

The Bearish Harmonics indicator returns data that you can use to create alerts and backtest strategies.

Here is the data returned by the indicator, along with its descriptions:

Data	Description
Signal	Sell Signal
Target Short	Price Target Value
Stop Loss Short	Safety Stop Value
Fibonacci	Value of the selected Fibonacci level
P 1	Value of the first construction point of the pattern
P 2	Value of the second construction point of the pattern
P 3	Value of the third construction point of the pattern
P 4	Value of the fourth construction point of the pattern
P 5	Value of the fifth construction point of the pattern

Backtesting and Automated Trading

You can integrate the indicator into a backtest to test a configuration. To do this, you must use the “CALL” function:

mySignal, myTargetShort, myStopLossShort, myFibonacci, myP1, myP2, myP3, myP4, myP5 = CALL "Bearish Harmonics"[1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 50, 50, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 1, 7, 1, 2, 1, 8, 50, 5, 14, 11, 2, 1, 3, 5, 1](close)

Indicator Returns

The Bearish Harmonics indicator provides all the information you need to backtest a strategy or create a trading robot. Here are the indicators’ returns and descriptions:

Data	Description
mySignal	Sell Signal
myTargetShort	Price Target Value
myStopLossShort	Safety Stop Value
myFibonacci	Value of the selected Fibonacci level
myP1, myP2, myP3, myP4, myP5	Value of the building points of the figures

Calling the indicator in a backtest

To call the indicator in a backtest, you must pass it its configuration parameters. I’ve created sample code to help you integrate the indicator into a strategy. The variable names are the same as those in the indicator.

The following code calls the Bearish Harmonics indicator. It will open short positions if a sell signal is detected:

//--------------------------------------------------------//
// *** Advanced Bearish Harmonics Backtest  *** //
//--------------------------------------------------------//
// * Author: Vivien Schmitt
// * Website: https://artificall.com
// * Indicator: Advanced Bearish Harmonics
// * Indicapor Description: https://artificall.com/indicator/prt/bearish-harmonic-patterns/
// * Marketplace:
// * Documentation:
// FR: https://artificall.com/docs/advanced-harmonics/documentation-bearish-harmonics-fr/
// EN: https://artificall.com/docs/advanced-harmonics/bearish-harmonics-documentation-en/
//--------------------------------------------------------//

DEFPARAM CUMULATEORDERS = False
DEFPARAM PRELOADBARS = 1000


//--------------------------------------------------------//
// *** POSITION SIZE *** //
//--------------------------------------------------------//
// Capital to invest
ONCE CapitalToInvest = 10000
// Minimum number of contracts
ONCE NumberOfContractsMin = 1
// Position Size
NumberOfContracts = MAX(ROUND(CapitalToInvest / Close, 2), NumberOfContractsMin)


//--------------------------------------------------------//
// *** SETTING BLOCK *** //
//--------------------------------------------------------//

// * Figure Selector
ONCE BearishButterfly = 1
ONCE BearishGartley = 1
ONCE BearishBat = 1
ONCE BearishAltBat = 1
ONCE BearishCrab = 1
ONCE BearishDeepCrab = 1
ONCE BearishCypher = 0
ONCE BearishShark = 0
ONCE Bearish50Pattern = 0
ONCE BearishThreeDrives = 0
ONCE BearishABCD = 0
ONCE BearishAltABCD = 0

// Figure and Line Sizes
ONCE OscilatorPeriod = 50
ONCE ZoneLengths = 50

// * Signals
ONCE SellZone = 0
ONCE PriceInZone = 1
ONCE PriceBreaksZone = 1
ONCE PriceTestsZone = 1
ONCE HorizontalBreakout = 1
ONCE HorizontalTest = 1
ONCE TopTrendLineBreakout = 1
ONCE TopTrendLineTest = 1
ONCE BottomTrendLineBreakout = 1
ONCE BottomTrendLineTest = 1

ONCE FigureDetection = 0
ONCE ValidatedSignals = 1

// * Flters
ONCE WithVolume = 1
ONCE WithDivergence = 1
ONCE InTheTrend = 0
ONCE Reversal = 0

// * Risk Management
ONCE TargetActivation = 1
ONCE TPLevel = 6
ONCE StopLossActivation = 1
ONCE SLLevel = 2

// * Fibonacci
ONCE DisplayFibonacciLevels = 0
ONCE FibonacciLevels = 0
ONCE FibonacciProlongation = 0

// * Display options
ONCE Transparency = 0
ONCE FigureColor = 0
ONCE SellZoneColor = 0
ONCE TPColor = 0
ONCE SLColor = 0
ONCE LineThickness = 0
ONCE FontSize = 0
ONCE DisplayFigureName = 0


//--------------------------------------------------------//
// * INDICATOR CALLING * //
//--------------------------------------------------------//
mySignal, myTargetShort, myStopLossShort, myFibonacci, myP1, myP2, myP3, myP4, myP5 = CALL "Bearish Harmonics"[BearishButterfly, BearishGartley, BearishBat, BearishAltBat, BearishCrab, BearishDeepCrab, BearishCypher, BearishShark, Bearish50Pattern, BearishThreeDrives, BearishABCD, BearishAltABCD, OscilatorPeriod, ZoneLengths, SellZone, PriceInZone, PriceBreaksZone, PriceTestsZone, HorizontalBreakout, HorizontalTest, TopTrendLineBreakout, TopTrendLineTest, BottomTrendLineBreakout, BottomTrendLineTest, FigureDetection, ValidatedSignals, WithVolume, WithDivergence, InTheTrend, Reversal, TargetActivation, TPLevel, StopLossActivation, SLLevel, DisplayFibonacciLevels, FibonacciLevels, FibonacciProlongation, Transparency, FigureColor, SellZoneColor, TPColor, SLColor, LineThickness, FontSize, DisplayFigureName](close)


//--------------------------------------------------------//
// *** Selling Conditions *** //
//--------------------------------------------------------//
IF NOT ShortOnMarket AND mySignal THEN
  // Target price
  Set Target Price myTargetShort
  // Stop-Loss price
  Set Stop Price myStopLossShort
  // Selling order
  SELLSHORT NumberOfContracts CONTRACTS AT MARKET
ENDIF

Backtest Results

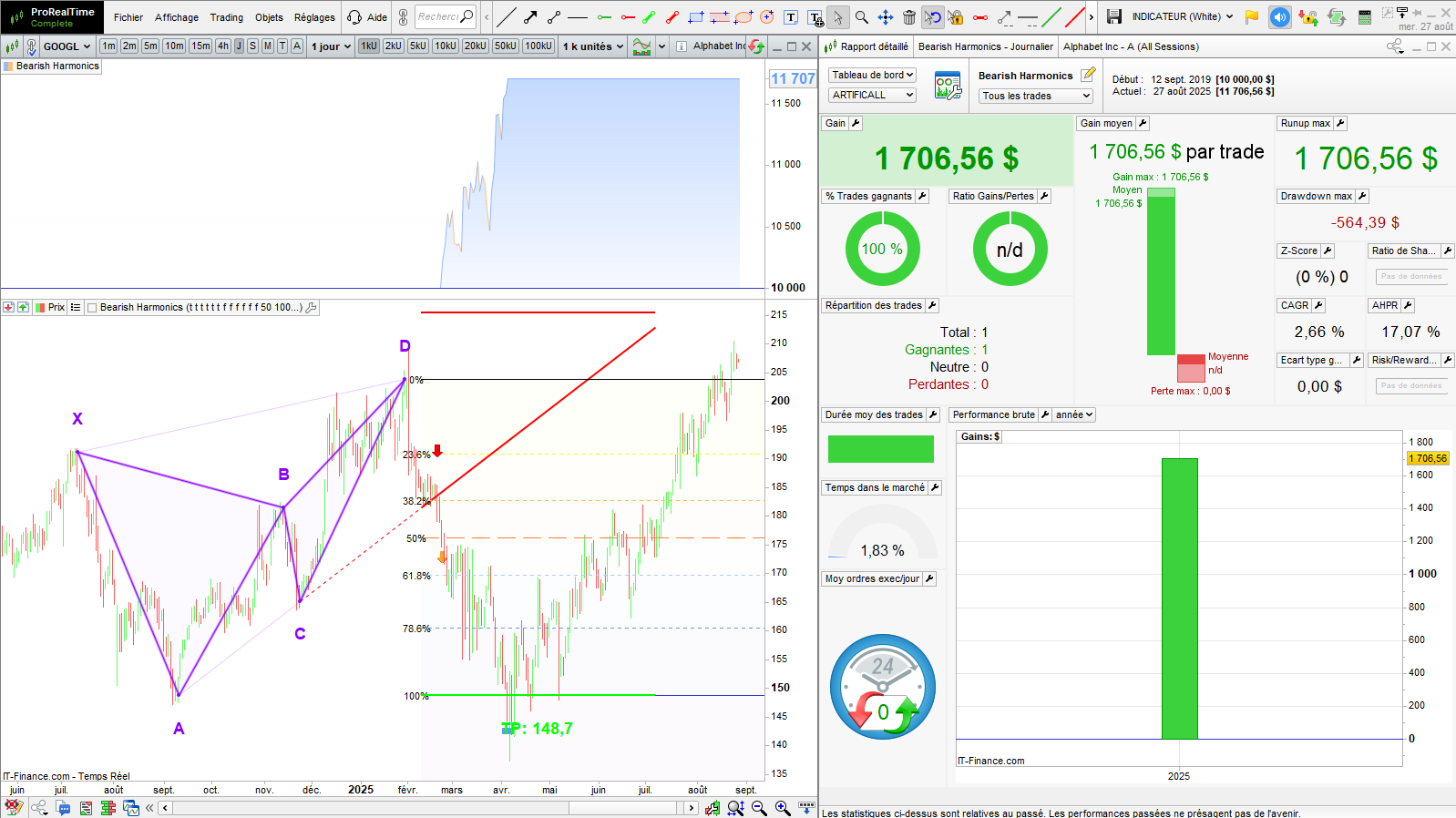

Here is the result of the previous code run on the Google stock in the daily timeframe:

Harmonic Pattern Screener

The screener provided with the indicator will help you identify opportunities in real-time. You can detect the occurrence of the twelve bearish harmonic patterns recognized by the indicator, along with sell signals. You can apply them to predefined or custom lists, across all asset classes and all time frames.

Installing the Screener

The screener installation procedure is identical to that of the indicator. You will need to upload the license key to your Prorealtime platform.

To access the screener, follow these steps:

Open the ProScreener Window

You can open the ProScreener window by clicking on “View” then “ProScreener“, or by using the shortcut “Ctrl-E“:

Click the “Create or Modify a Screener” wrench in the ProScreener window:

Select the harmonic pattern screener

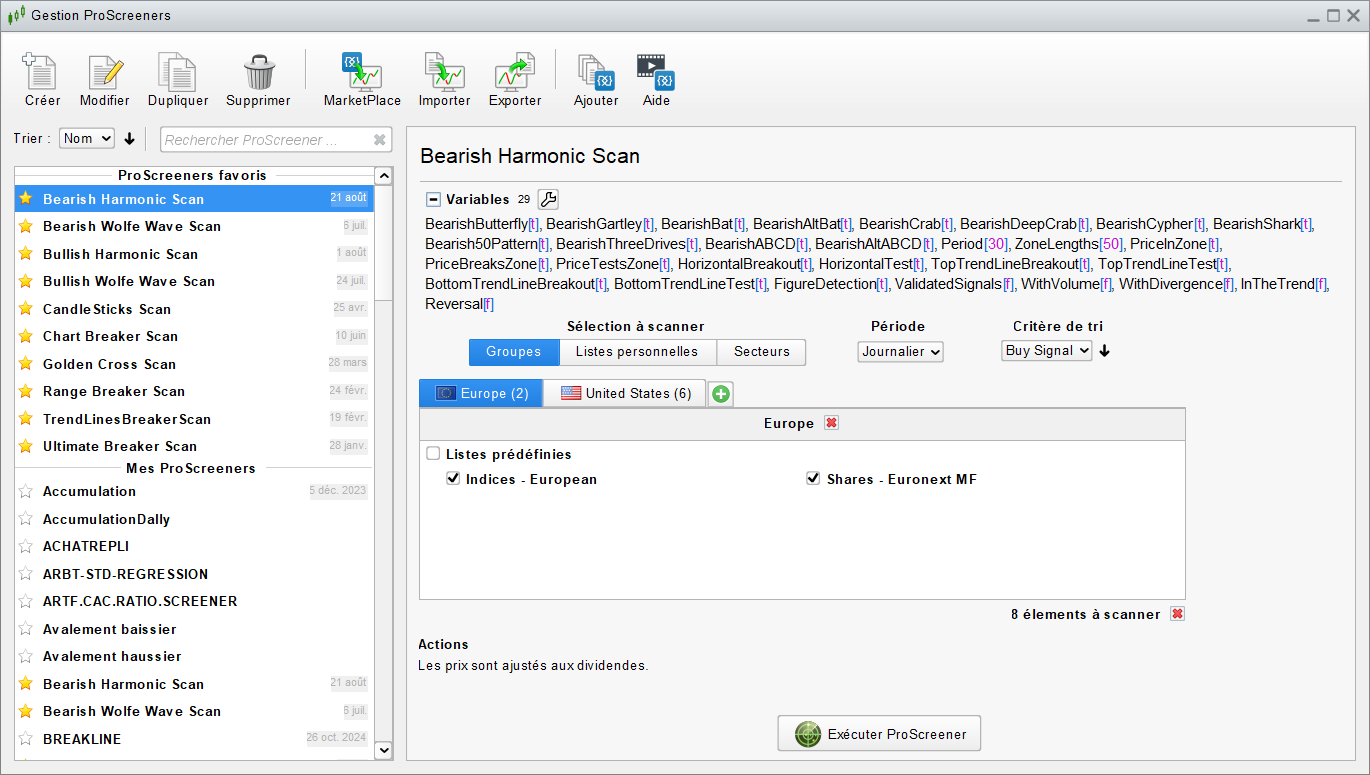

Select the screener named “Bearish Harmonics Scan“:

Screener Configuration

The screener uses the same parameters as the indicator, except for the risk management and display options, which are not required for the scanner’s operation.

Harmonic Pattern Selection

You can select the harmonic patterns of your choice by checking the corresponding boxes:

Pattern Size

You can define the pattern size using the “Period” and “ZoneLengths” parameters:

Signal Selection

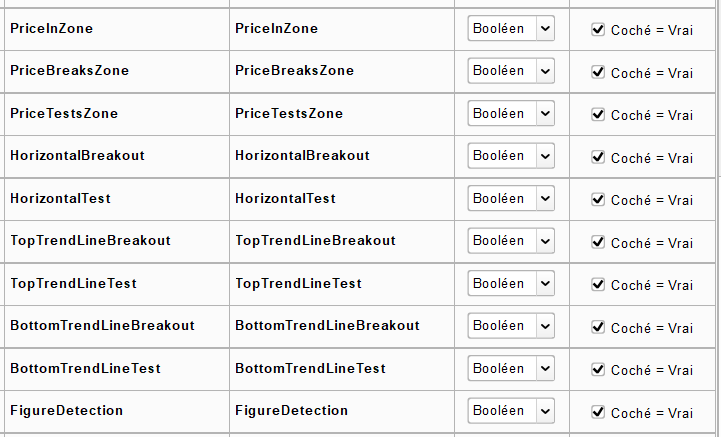

You can select the signals of your choice by checking the corresponding boxes:

Signal Filters

You can filter signals based on their validation, volume, market strength, and trend by checking the corresponding boxes:

Timeframe and Asset List

The timeframe and asset list can be selected in the “ProScreener Management” window.

Choosing the Timeframe

You can choose the timeframe in which the screener will search for opportunities:

Select a List of Assets

You must select a list in which you want to search for opportunities:

Launch the Screener

You can now launch the screener by clicking the “Run ProScreener” button:

Screener Results

After launching the screener, the discovered opportunities will appear in the results list. Simply click on a line to display it on the price chart:

Increase the number of opportunities

If the screener doesn’t return any results, it means that no stocks match your configuration. Here are some actions you can take to increase the number of opportunities found by the screener:

• Reduce the oscillator period
• Disable volume and strength filters
• Disable trend filters
• Choose large asset lists like the Nasdaq and NYSE
• Choose a lower timeframe

Note: ProScreener limits the historical access to 256 candles. As a consequence, you will not detect patterns exceeding this number of candles.
